6204-2RS Bearings

BC Precision

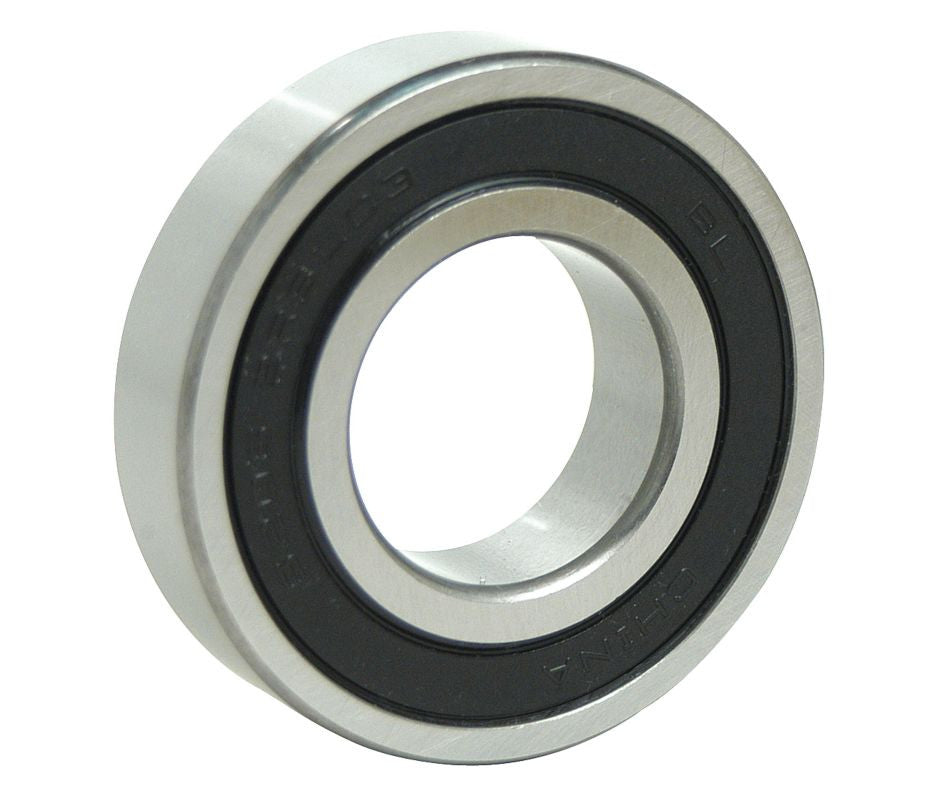

6204-2RS Sealed Bearings 20x47x14 Ball Bearing / Pre-Lubricated

$ 6.95
  • ABEC RATING: ABEC1
  • Ball Diameter: 6.747
  • Ball Grade: 10
  • Ball Material: AISI 52100 Chrome Steel
  • Number Of Balls: 8
  • Bearing Material: AISI 52100 Chrome Steel
  • # Of Seals: 2
  • Inside Diameter: 20mm
  • Outside Diameter: 47mm
  • Width: 14mm
  • Dynamic Load: 12,800
  • Static Load: 6,650
  • Working Temperature: 121
  • MAX RPM: 15,000

The 6204-2RS ball bearing has 2 non-contact metal shields and 2 contact rubber seals, one on each side of the bearing. Its outer diameter is 47mm, inside diameter is 20mm and the width is 14mm. It can handle dynamic load of 12,800 and static load of 6,650. The maximum RPM is 15,000. This is a high quality ball bearing that can take electric motor demands if needed.
