623ZZ

BC Precision

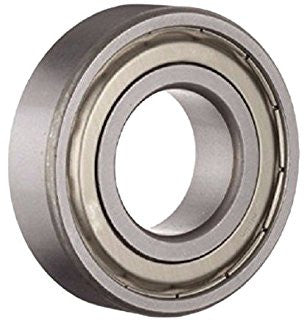

623ZZ 3mm x 10mm x 4mm Shielded Deep Groove Precision Ball Bearings

$ 4.95
  • ABEC RATING: ABEC1
  • Ball Diameter: 1.588 mm
  • Ball Grade: 10
  • Ball Material: AISI 52100 Chrome Steel
  • Number Of Balls: 7
  • Bearing Material: AISI 52100 Chrome Steel
  • # Of Shields: 2
  • Inside Diameter: 3mm
  • Outside Diameter: 10mm
  • Width: 4mm
  • Basic Load: 265 LB
  • Dynamic Load: 725 LB
  • Working Temperature: -20 to +230 F
  • RPM: 67000

This deep-groove shielded ball bearing supports both axial and radial loads, and has deep groove geometry that makes it efficient for high speeds. Shields are placed on both sides of the bearing. They keep the contaminants out and the lubricant in. This bearing can be used for applications with combined axial and radial loads that require high rotational speed and running accuracy like drives, gearboxes, clutches, turbines, pumps, textile machines, and compressors.
