696ZZ

BC Precision

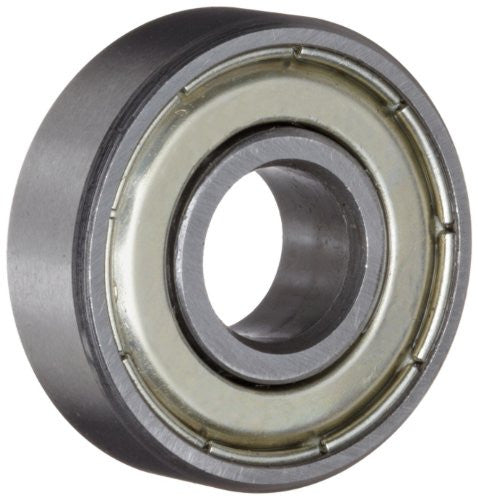

696ZZ Sealed Bearings 6x15x5 Ball Bearings / Pre-Lubricated

$ 4.95
  • ABEC RATING: ABEC1
  • Ball Diameter: 2.381mm
  • Ball Grade: 10
  • Ball Material: AISI 52100 Chrome Steel
  • Number Of Balls: 7
  • Bearing Material: AISI 52100 Chrome Steel
  • # Of Shields: 2
  • Inside Diameter: 6mm
  • Outside Diameter: 15mm
  • Width: 5mm
  • Basic Load: 200 lbs
  • Dynamic Load: 530 lbs
  • Working Temperature: -30 to 280 degrees
  • RPM w/ Grease: 3846,000
  • RPM w/ Oil: 54,000

This is a popular ball bearing used often in many trucks, RC cars, and other applications. It is suitable for high speeds. Conformity between the balls and raceway grooves lets the bearing accommodate axial loads in both directions. It can also handle radial loads. The 696ZZ is stainless steel shielded. There are 2 metal shields – 15mm outside, and 6mm inside. It has a width of 5mm. The ball bearing has been finely polished for long life. Maintenance free!
