BC Precision

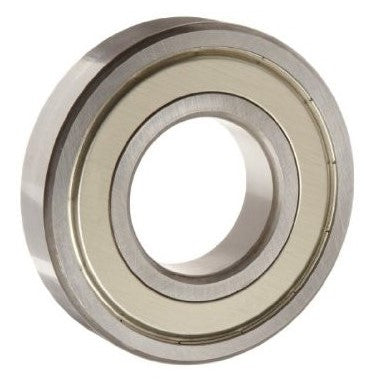

6305ZZ Sealed Bearings 25x62x17 Ball Bearings / Pre-Lubricated

$ 7.95
  • Ball Diameter: 10.319mm
  • Ball Grade: 10
  • Ball Material: AISI 52100 Chrome Steel
  • Number Of Balls: 8
  • Bearing Material: AISI 52100 Chrome Steel
  • # Of Shields: 2
  • Inside Diameter: .25mm
  • Outside Diameter: 62mm
  • Width: 17mm
  • Basic Load: 11.5 kN
  • Dynamic Load: 22.2 kN
  • Working Temperature: -20 to 120 degrees
  • RPM w/ Grease: 12,000
  • RPM w/ Oil: 14,000

A high quality deep groove shielded ball bearing. It can accept both axial and radial loads for high speed operations, but is primarily meant for operations where the inner ring of the bearing rotates. The balls and bearing material are both made of chrome steel. The cage keep the balls spaced evenly, which prevents contact, reduces friction, and distributes the load efficiently. This ball bearing can be used in electric motor and other applications.
